A Guide to Electric Vehicle Battery Technology

At the heart of every electric vehicle is a technology that completely redefines what a car is and can be: the battery. It’s far more than just a power source; it's the modern equivalent of the engine, fuel tank, and transmission all rolled into one highly engineered system. This single component is the master key that unlocks an EV's most important characteristics, from its driving range and acceleration to its overall lifespan.

The Power Core of Modern Electric Cars

When you look at an EV battery pack, you're not just seeing a box of cells. You're looking at the core of the vehicle's personality. It dictates nearly every aspect of the driving experience—how far you can go, how fast you can get there, and how long the car will serve you. The entire field of electric vehicle battery technology is a relentless pursuit of perfecting this central element.

The progress we've seen is nothing short of incredible. Think back to the first-generation Nissan Leaf in 2010, which offered a practical but limited range of about 99 miles. Fast forward to today, and it's routine for new EVs to cruise past 300 miles, with some high-end models stretching that to over 450 miles. This leap wasn't magic; it was the direct result of intense innovation in battery chemistry and pack design.

Why Battery Technology Is So Important

The battery's influence goes much deeper than just the numbers on a spec sheet. It's the central pillar that determines a vehicle's performance, price tag, and long-term viability. Understanding why it matters so much is key to grasping where the entire auto industry is headed.

• Performance and Power: The explosive acceleration that EVs are famous for? That comes directly from the battery's ability to discharge a massive amount of energy in an instant. High-performance models are built around batteries designed for this exact purpose, giving them the kind of off-the-line speed that can humble a supercar.
• Vehicle Cost: A battery pack is, by a wide margin, the most expensive part of an EV. Its cost is the biggest factor in the car's final sticker price. This is why the industry's push to lower manufacturing costs is so critical—it’s the straightest path to making EVs affordable for everyone.
• Lifespan and Durability: These batteries are engineered to be marathon runners, not sprinters. Most automakers guarantee their packs for at least 8 years or 100,000 miles. The technology is specifically designed to endure thousands of charging and discharging cycles while holding onto the majority of its original energy capacity.

At its core, the battery is the defining feature of any electric vehicle. Improving its energy density, safety, and cost is the primary mission that drives the entire industry forward, unlocking the potential for a fully electric future.

In this guide, we'll pull back the curtain on the complex world of EV batteries. We’ll explore the different chemistries battling for dominance, see how tiny individual cells are bundled into powerful packs, and look ahead at the next wave of innovations set to redefine mobility all over again.

Decoding the Chemistry Inside EV Batteries

At its core, what makes an electric vehicle tick comes down to the chemistry inside its battery. The precise cocktail of materials within each cell is what ultimately defines its performance—how much energy it can store, how safe it is, how long it will last, and what it costs. While the world of battery science is vast, the EV market today is overwhelmingly powered by different flavors of Lithium-ion (Li-ion) technology.

Li-ion batteries first hit the commercial scene back in 1991, changing the game for portable electronics. But their impact on the automotive world has been nothing short of transformative. What started as a technology offering around 100 Wh/kg has evolved into cells pushing well over 250 Wh/kg, giving modern EVs the legs to travel 300 miles or more.

This leap in performance happened alongside a staggering drop in price. In 2010, the cost was over $1,000 per kWh; by 2024, it plummeted to roughly $137 per kWh. This dual improvement in energy and cost is the engine that turned EVs from a niche curiosity into a mainstream reality. You can explore a detailed timeline of battery technology and EV advancements to see just how far we've come.

To really get a handle on today's EV market, you have to understand the main players in the Li-ion family. Each one represents a different set of engineering trade-offs, and automakers choose them carefully to match a vehicle's intended purpose.

NMC: The Marathon Runner for Long-Range EVs

One of the most common chemistries, especially in high-performance and long-range vehicles, is Nickel Manganese Cobalt (NMC). You can think of NMC as the marathon runner of the battery world. Its greatest strength is its fantastic energy density, which means it can cram a huge amount of power into a compact, lightweight package.

This is exactly what you need when the goal is to maximize miles per charge. But that high performance doesn't come for free. The cobalt in NMC batteries is expensive and comes with a notoriously complicated supply chain, driving up the overall cost. While perfectly safe, these cells also run a bit hotter, demanding more sophisticated thermal management systems to keep them happy.

LFP: The Reliable Workhorse for Everyday Driving

On the other end of the spectrum, we have Lithium Iron Phosphate (LFP). If NMC is the long-distance athlete, LFP is the dependable workhorse. Its calling cards are an outstanding safety record, an incredibly long cycle life, and a much lower price tag.

LFP batteries completely sidestep the cobalt issue, making them more affordable and ethically easier to source. Their inherent chemical stability also means they're far less prone to overheating, which simplifies the cooling systems needed to manage them. The trade-off? Lower energy density. An LFP battery of the same size and weight just can't store as much energy as an NMC pack, resulting in a shorter range. This makes LFP a perfect fit for standard-range models, commercial fleets, and markets where affordability is the top priority.

The choice between NMC and LFP is a classic engineering balancing act. Automakers have to weigh the customer's hunger for maximum range against the practical realities of cost, durability, and supply chain stability. There’s no single “best” chemistry—just the right tool for the right job.

To make these distinctions clearer, let's look at a side-by-side comparison.

Comparing Common EV Battery Chemistries

This table breaks down the key characteristics of the most popular and up-and-coming battery chemistries in the EV space. It’s a quick guide to understanding why an automaker might choose one over the other.

Chemistry Type	Key Advantage	Main Trade-Off	Common Application
NMC (Nickel Manganese Cobalt)	High energy density for maximum range	Higher cost, reliance on cobalt	Long-range and premium EVs
LFP (Lithium Iron Phosphate)	Excellent safety, long lifespan, lower cost	Lower energy density, resulting in less range	Standard-range EVs, commercial vehicles, energy storage
NCA (Nickel Cobalt Aluminum)	Very high energy density, good power output	High cost, complex thermal management needs	High-performance and early long-range EVs (e.g., Tesla)
Na-ion (Sodium-ion)	Extremely low cost, abundant materials	Lower energy density (currently), newer tech	Future entry-level EVs, stationary grid storage

As you can see, every option involves a give-and-take. This constant balancing act is what drives innovation as researchers hunt for a chemistry that can deliver the best of all worlds.

Emerging Alternatives: Is Sodium-Ion the Future?

While Li-ion is king for now, the search for what's next is relentless. One of the most promising contenders on the horizon is Sodium-ion (Na-ion) technology.

The appeal is simple: sodium is one of the most abundant elements on Earth and is drastically cheaper than lithium. This opens up a path to much more affordable batteries.

Here’s why it’s getting so much attention:

• Sustainability: Na-ion batteries can be built without lithium or cobalt, which would be a huge relief for supply chain pressures and the environmental baggage that comes with mining those materials.
• Safety: Early signs show that Na-ion chemistries have excellent thermal stability, which could make them even safer than some of their Li-ion counterparts.
• Performance: While its energy density is currently lower than Li-ion, the technology is improving at a breakneck pace. Plus, it performs exceptionally well in cold weather, a known weak spot for lithium-based cells.

All this makes Sodium-ion a very compelling option for the future, particularly for entry-level EVs and stationary energy storage systems where cost is a much bigger deal than squeezing out every last mile of range. The rapid progress here is a great reminder that the story of battery science is far from over.

How an EV Battery Is Built From Cell to Pack

Knowing the chemistry inside an EV battery is just the starting point. The real engineering magic happens when you package that chemistry for the real world. A modern EV battery isn't a single, monolithic block; it’s a meticulously organized system of thousands of individual components, built from the smallest cell all the way up to the final, heavy-duty pack.

Think of it like building with LEGOs. The final structure's strength, size, and function all hinge on the shape of the individual bricks and how you connect them. In the EV world, those fundamental bricks are called cells.

The Three Foundational Cell Formats

A battery cell is the smallest complete unit that can store and release electricity. Almost every EV on the road today uses one of three distinct cell shapes, each with its own engineering trade-offs that impact everything from energy density and cooling to the overall shape of the battery pack.

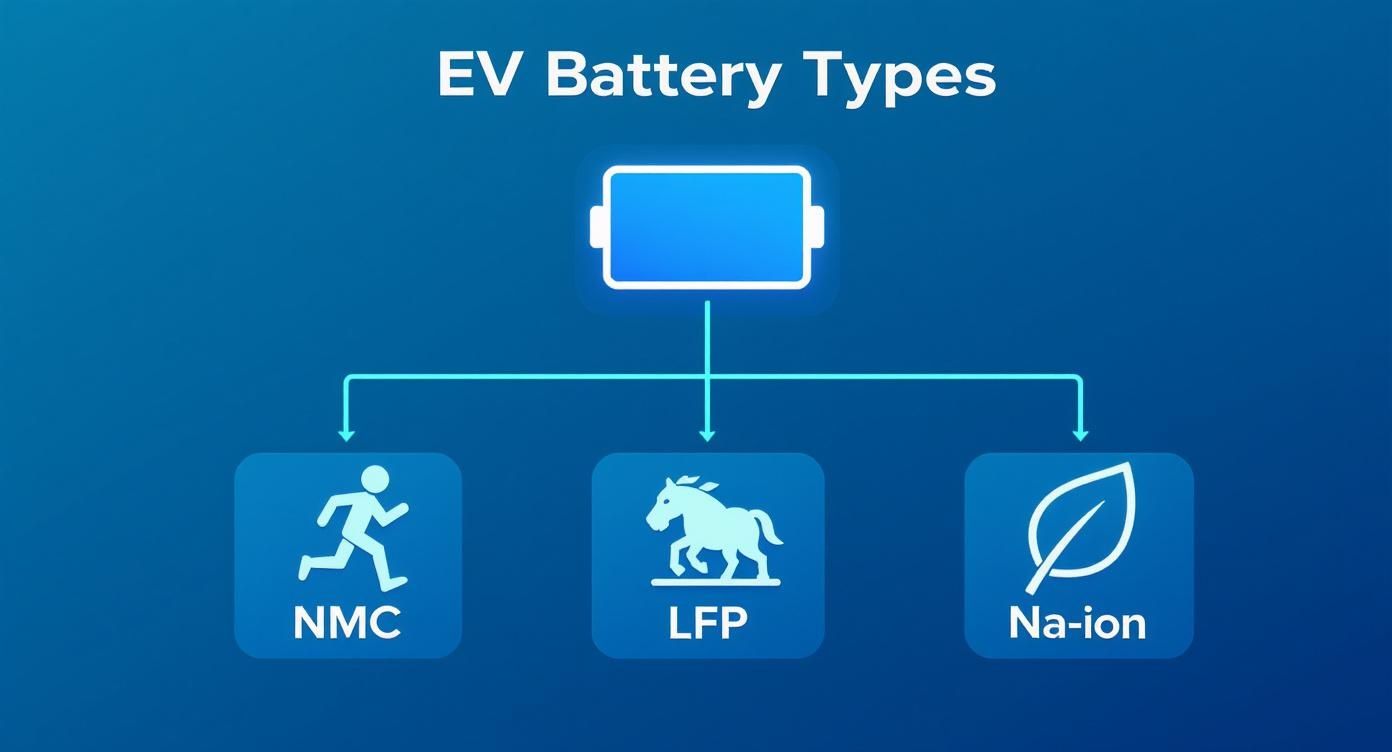

The infographic below shows how different lithium-ion chemistries fit into the bigger picture, from high-performance NMC to workhorse LFP and even newer options like Sodium-ion.

You can see how each chemistry plays a different role. NMC is the "marathon runner" built for maximum range, while LFP is the "workhorse," prized for its durability and lower cost.

Here’s a closer look at the three main cell types:

• Cylindrical Cells: Famously used by Tesla, these look like oversized AA batteries. Their round shape is inherently strong and great for shedding heat, but packing them together inevitably leaves small, empty gaps between them.
• Prismatic Cells: These are essentially small, rectangular bricks. Their flat sides make them incredibly space-efficient, allowing engineers to stack them tightly for excellent energy density.
• Pouch Cells: Looking like a sealed foil coffee bag, these cells are flexible and lightweight. Their main advantage is versatility—they can be shaped to fit odd spaces within a vehicle's chassis, but their soft exterior makes them more susceptible to swelling or physical damage.

The choice of cell format is one of the first and most critical decisions in designing a battery pack, directly shaping the vehicle’s range, weight, and safety characteristics.

From Modules to Revolutionary Pack Designs

Traditionally, engineers would group these individual cells into protected clusters called modules. A single module might hold dozens or even hundreds of cells, all wired together inside a protective metal casing. For years, this was the industry standard. It simplified manufacturing and made repairs seem easier—in theory, you could just swap out a faulty module instead of the whole pack.

But the industry is now shifting toward a much leaner architecture. The big breakthrough is the cell-to-pack (CTP) design. This approach completely ditches the module casings, integrating the cells directly into the main battery pack's structure.

By skipping the module stage, cell-to-pack designs reduce weight, cut down on redundant components, and free up valuable space. This allows engineers to either make the pack smaller and lighter for the same range or pack more active, energy-storing material into the same footprint, boosting the vehicle's total range.

This kind of structural innovation is a huge part of the ongoing mission to build more efficient and affordable electric vehicle battery technology.

The Brain of the Battery: The BMS

Watching over this entire complex electrical and chemical system is the Battery Management System (BMS). The BMS is the unsung hero of every EV battery—a sophisticated electronic brain that constantly monitors and controls every aspect of the pack’s operation. It’s the vigilant supervisor that ensures safety, reliability, and a long service life.

Its most critical jobs include:

1. Monitoring Health: The BMS keeps a close eye on the voltage, current, and temperature of individual cells to make sure they're all operating within safe parameters.
2. Balancing Cells: It works to ensure every cell charges and discharges at the same rate. This process, called "cell balancing," is crucial for preventing some cells from aging faster than others, which maximizes the pack's usable capacity and lifespan.
3. Calculating State of Charge: That range estimate on your dashboard? That comes directly from the BMS, which is constantly calculating how much energy is left in the battery.
4. Ensuring Safety: If the BMS detects a serious problem, like an overheating cell or a short circuit, it can instantly disconnect the battery to prevent a fire or other hazardous event.

Without a smart and responsive BMS, even the most powerful battery chemistry would be dangerously unpredictable. It's the vital piece of technology that turns raw chemical potential into the smooth, dependable performance EV drivers have come to expect.

Why Thermal Management Is a Non-Negotiable

Think of an electric vehicle's battery pack as a world-class athlete. It has a surprisingly narrow comfort zone where it can deliver its absolute best performance. If you push it too hard in the heat or make it work in the freezing cold, its abilities take a nosedive. This is precisely why thermal management is a cornerstone of modern electric vehicle battery technology.

Every single time a battery charges or discharges, the shuttle of lithium ions back and forth generates heat from internal resistance. During a gentle city cruise, this is hardly noticeable. But stomp on the accelerator or plug into a DC fast charger, and the energy flow ramps up dramatically, producing a serious amount of heat that has to go somewhere.

Without a robust system to manage this temperature, the battery faces two big threats. The most immediate is overheating, which rapidly speeds up the chemical breakdown of the cells and permanently slashes the battery's capacity. In a worst-case scenario, this can trigger a dangerous chain reaction called thermal runaway, where cells begin venting flammable gases and can even catch fire.

The Problem With Temperature Extremes

Cold weather brings a completely different, yet equally frustrating, set of challenges. As the temperature plummets, the chemical reactions inside the battery slow to a crawl. This sluggishness cuts into power output, giving you weaker acceleration, and severely limits how quickly the battery can accept a charge. The result? Painfully slow charging sessions in the winter.

This is the real reason an EV's range can drop so much in the winter. The battery just isn't operating efficiently, and a good chunk of its precious energy gets diverted to simply warming itself up to a functional temperature.

A battery's happy place is a tight window, typically between 20°C and 40°C (68°F to 104°F). Operating outside this range, hot or cold, directly compromises performance, longevity, and safety. Effective thermal management is the engineering that keeps the battery in that sweet spot.

To keep things stable, engineers have settled on two main strategies: air cooling and liquid cooling. Each one strikes a different balance between performance, complexity, and cost.

Air Cooling: A Simpler Approach

Air cooling is the most straightforward method for managing battery temperature. In its most basic "passive" form, it just uses the ambient air flowing over the battery pack while the car is moving. A slightly more advanced "active" system adds fans to force more air through, giving a little more control.

• Pros: It’s simple, light, and cheap to build into a vehicle.
• Cons: Its effectiveness is very limited, especially in hot climates or during stressful events like repeated fast charging.

This approach was pretty common in the first generation of EVs but is now mostly seen in mild hybrids or budget-friendly models where the performance demands aren't as high. Its weaknesses become glaringly obvious during any kind of sustained, high-power use.

Liquid Cooling: The Industry Standard

For just about every modern, high-performance EV on the road today, liquid cooling is the undisputed standard. These sophisticated systems circulate a special coolant—usually a mix of water and ethylene glycol—through a maze of channels and plates that weave around and between the battery modules.

The liquid absorbs heat directly from the cells and pumps it to a radiator, typically at the front of the car, where it can be safely released into the air. What’s really clever is that this system can also work in reverse. In the cold, it can use a small heater to warm the coolant, bringing the battery pack up to its optimal operating temperature much faster.

This level of control pays off in big ways. It unlocks consistently faster charging speeds, ensures a more predictable driving range no matter the weather, and ultimately extends the battery’s lifespan by shielding it from the stress of temperature extremes. It’s a more complex and expensive setup, for sure, but it’s absolutely essential for wringing every bit of performance out of today's powerful EV batteries.

The Next Generation of EV Battery Technology

https://www.youtube.com/embed/0kZVwqVzB_M

While today’s lithium-ion batteries are genuine engineering marvels, the race is already on to build their successor. Researchers and automakers are pouring billions into developing the next leap forward in electric vehicle battery technology, chasing breakthroughs that could fundamentally reshape the performance, safety, and cost of EVs. The ultimate prize? A battery that charges in minutes, lasts for decades, and finally makes electric mobility a reality for everyone.

If you look back, the story of the electric vehicle is really a story of continuous battery improvement. The shift to nickel-metal hydride (NiMH) batteries in the 1990s was a huge step, pushing vehicles like the second-generation GM EV1 to ranges of up to 160 miles. But NiMH just couldn't pack the same punch as gasoline. This limitation pushed the industry toward lithium-ion in the early 2000s, which offered far better performance and a longer lifespan. You can get more background on these early EV battery advancements on large-battery.com.

That relentless cycle of innovation is still spinning, and several promising technologies are now vying for the spotlight. The one that gets the most attention, often touted as the holy grail, is the solid-state battery.

The Promise of Solid-State Batteries

The idea behind a solid-state battery is simple but profound: replace the flammable liquid electrolyte inside a conventional Li-ion cell with a solid, non-combustible material. Think of it like swapping the sloshing water in a water balloon for a solid block of ice—it’s inherently more stable and holds its shape. This single change unlocks a cascade of benefits that tackle nearly every major headache for today's EV owners.

By getting rid of the liquid, solid-state designs become far more resistant to the spiky dendrite formations that can cause short circuits and fires in traditional batteries. This built-in safety opens the door to using pure lithium metal for the anode, which is the key to dramatically boosting energy density.

A successful solid-state battery could deliver a 50-80% increase in energy density, pushing an EV's range to 500 miles or more on a single charge. At the same time, its stability could allow for charging from 10% to 80% in under 15 minutes.

These are game-changing numbers that would make EVs safer and more convenient than ever before. But getting from the lab to the production line is paved with some serious scientific challenges.

The Hurdles to Overcome

For all its immense promise, solid-state technology isn't quite ready for primetime. Scientists and engineers are still wrestling with a few key problems:

• Material Science: Finding the perfect solid electrolyte is tricky. It needs to be an excellent conductor for ions but also stable, durable, and cheap enough to manufacture at a massive scale.
• Manufacturing Complexity: You can't just drop solid-state cells into existing battery factories. The technology requires entirely new manufacturing processes. Getting a perfect, seamless interface between the solid electrolyte and the solid electrodes is a huge engineering puzzle.
• Durability and Lifespan: During charging and discharging, the solid materials inside the battery expand and contract. Over thousands of cycles, this stress can create tiny cracks that kill performance. It's a problem researchers are working hard to solve.

Companies like QuantumScape, Solid Power, and Toyota are making real headway, but the consensus is that we're still several years away from seeing solid-state batteries in mainstream consumer EVs.

Other Pioneering Chemistries on the Horizon

Beyond solid-state, other exciting chemistries are being explored that could play a niche or even a leading role in the future of electric vehicle battery technology.

Two of the most intriguing are Lithium-Sulfur (Li-S) and Lithium-Air (Li-Air). Li-S batteries promise incredible theoretical energy density and could be much cheaper to make since sulfur is so abundant. Li-Air technology takes this a step further by literally pulling oxygen from the surrounding air to use as a reactant, which could theoretically lead to batteries with an energy density that rivals gasoline.

Of course, both of these technologies face their own unique and significant scientific hurdles, especially when it comes to stability and cycle life. Still, they represent the outer frontier of battery research, offering a tantalizing glimpse into a future where an EV's range and cost are no longer barriers to adoption.

The EV Battery’s Journey: From Mine to Grid and Back Again

An EV battery’s story doesn't end when the car rolls off the assembly line. In many ways, it's just beginning. The full lifecycle of this critical component is a global journey, starting deep underground and, ideally, ending in a closed-loop system that’s essential for a sustainable future. Following this path is the key to understanding the real-world impact of electric vehicle battery technology.

It all starts with the raw materials. The supply chain is a complex global web of mining, refining, and manufacturing. Key elements like lithium, cobalt, nickel, and manganese are concentrated in just a few regions, which immediately brings geopolitical and ethical considerations into the production of every single EV.

This reliance on mined materials isn't new. In fact, the story of EVs has always been a story about batteries. The journey began with the lead-acid battery back in 1859. By 1900, EVs actually made up 38% of the vehicles produced in the U.S., powered by these heavy but workable batteries that offered ranges around 100 miles. Their limitations, however, eventually gave way to the internal combustion engine, underscoring a lesson we're still learning today: the viability of EVs has always hinged on battery progress. You can dive deeper into this fascinating history and the evolution of electric vehicle battery technology on spglobal.com.

When a Battery Retires From the Road

Most EV batteries are engineered to outlast the typical ownership cycle of a car, often warrantied for 8 years or 100,000 miles. But "end of life" in a vehicle doesn't mean the battery is dead. It simply means its capacity has dipped to about 70-80% of its original charge—which is still a huge amount of energy storage.

Instead of heading to a landfill, these retired batteries are perfect candidates for a second life.

A retired EV battery, no longer fit for the demands of the road, still holds tremendous value. This opens the door to "second-life" applications, where these powerful energy storage units can support the wider energy ecosystem for another decade or more.

These second-life applications are a cornerstone of the circular economy. They provide a valuable service before the battery needs to undergo the energy-intensive process of recycling.

Second-Life: Powering More Than Just Cars

Repurposed EV batteries are finding new homes in stationary energy storage. By bundling them together, companies can create large-scale systems to support the electric grid or provide backup power for buildings.

Here are a few of the most promising uses:

• Grid Stabilization: They can soak up excess energy from solar and wind farms and then feed it back into the grid when demand spikes, helping prevent blackouts.
• Peak Shaving: A business can charge these battery banks during off-peak hours when electricity is cheap, then run on battery power during expensive peak hours, dramatically cutting their energy bills.
• EV Charging Hubs: Installing second-life batteries at fast-charging stations creates a local energy buffer, reducing the immense strain on the grid when multiple EVs plug in at once.

Closing the Loop with Recycling

After a battery has served its second life and its capacity has truly faded, the final step is recycling. This isn't just about waste management; it's about recovering precious resources. Modern recycling techniques can reclaim up to 95% of the critical minerals inside a battery pack, including lithium, cobalt, and nickel.

These recovered materials go right back into the supply chain to produce new batteries, creating a closed-loop system. This model reduces the need for new mining, shrinks the environmental footprint of battery production, and helps build a more resilient supply chain. As the first wave of modern EVs approaches retirement, scaling up our recycling infrastructure is one of the most urgent challenges in building a truly sustainable electric future.

Common Questions About EV Batteries

As electric cars become a more common sight on our roads, practical questions about their most expensive and critical component—the battery—are popping up everywhere. People want to know the real story behind ownership, from how long the battery will last to how their charging habits might affect it. Let's break down some of the most common concerns.

Most modern EV batteries are engineered to last the entire life of the car, which could easily be 10 to 20 years. Automakers stand behind this, typically offering warranties that cover 8 years or 100,000 miles. This isn't a promise that the battery will be perfect; it's a guarantee that it will retain at least 70% of its original capacity during that time. Think of it as a slow, gradual fade, not a sudden failure.

How Charging Habits Affect Battery Health

A big question I often hear is about fast charging. Does it kill the battery? Well, consistently hammering your battery with high-powered DC fast chargers can speed up degradation compared to slower AC charging. The reason is simple: that intense flow of power generates a lot of heat, and heat is the enemy of battery chemistry.

However, it's not something to panic about. Every EV sold today has a sophisticated thermal management system designed to protect the battery from overheating during these high-stress charging sessions. The best practice for day-to-day driving is to charge at home on a Level 2 AC charger, which is much kinder to the battery. Save the DC fast chargers for road trips or when you're in a pinch; they’re perfectly fine for occasional use, just don't make it your only routine.

The secret to a long battery life is avoiding extremes. Try not to constantly charge to 100% or let the battery sit near empty for long stretches. If you can do that and limit your reliance on DC fast charging, you'll go a long way in preserving its health for years.

What Happens to Old EV Batteries?

A battery that can no longer handle the intense demands of powering a car is far from being junk. Once its capacity drops below the 70-80% mark, it's ready for a second act in the circular economy.

Many of these retired EV batteries are repurposed for "second-life" applications. They get a new job as part of a stationary energy storage system, providing backup power for a commercial building or helping stabilize the electric grid by soaking up excess solar or wind energy.

When a battery finally reaches the end of its second life, it heads to a specialized recycling facility. Here, technicians work to recover valuable materials like lithium, cobalt, and nickel. This is a critical step, as it reduces our dependence on new mining and helps create a more sustainable supply chain for the next generation of EV batteries.

---
